Input Field Configuration
On each trigger, search, or create in the operation
directive, you can provide fields as an array of objects under inputFields
.
Those fields have various options you can provide. Here is a brief example:
Notably, fields come in different types, which may look and act differently in the Zap editor. The default field display is a single-line input field.
Type | Behavior |
---|---|
string | Accepts text input. |
text | Displays large, <textarea> -style entry box, accepts text input. |
code | Displays large, <textarea> -style box with a fixed-width font, accepts text input. |
integer | Accepts integer number values. |
number | Accepts any numeric value, including decimal numbers. |
boolean | Displays dropdown menu offering true and false options. Passes along true or false . |
datetime | Accepts both precise and human-readable date-time values. Passes along an ISO-formatted time string. |
file | Accepts a file object or a string. If a URL is provided in the string, Zapier will automatically make a GET for that file. Otherwise, a text file will be generated. |
password | Displays entered characters as hidden, accepts text input. Does not accept input from previous steps. |
copy | Does not allow users to enter data. Shows the value of the Markdown-formatted Help Text for the field as a rich text note in the Zap editor. Good for important notices to users. |
You can find more details on the different field schema options at our Field Schema.
Custom/Dynamic Fields
In some cases, you may need to provide dynamically-generated fields - especially for custom ones. This is common functionality for CRMs, form software, databases, and other highly-customizable platforms. Instead of an explicit field definition, you can provide a function we’ll evaluate to return a list of fields - merging the dynamic with the static fields.
You should see
bundle.inputData
partially filled in as users provide data - even in field retrieval. This allows you to build hierarchical relationships into fields (e.g. only show issues from the previously selected project).
A function that returns a list of dynamic fields cannot include additional functions in that list to call for dynamic fields.
Additionally, if there is a field that affects the generation of dynamic fields, you can set the property altersDynamicFields: true
. This informs the Zapier UI whenever the value of that field changes, the input fields need to be recomputed. For example, imagine the selection on a static dropdown called “Dessert Type” determining whether the function generating dynamic fields includes the field “With Sprinkles?” or not. If the value in one input field affects others, this is an important property to set.
Only dropdowns support
altersDynamicFields
.
When using dynamic fields, the fields will be retrieved in three different contexts:
-
Whenever the value of a field with
altersDynamicFields
is changed, as described above. -
Whenever the Zap Editor opens the “Set up” section for the trigger or action.
-
Whenever the “Refresh fields” button at the bottom of the Editor’s “Set up” section is clicked.
Be sure to set up your code accordingly - for example, don’t rely on any input fields already having a value, since they won’t have one the first time the “Set up” section loads.
Dynamic Dropdowns
See Dynamic Dropdowns.
Computed Fields
In OAuth and Session Auth, Zapier automatically stores every value from an integration’s auth API response i.e. that’s getAccessToken
and refreshAccessToken
for OAuth and getSessionKey
for session auth.
You can return additional fields in these responses, on top of the expected access_token
or refresh_token
for OAuth and sessionKey
for Session auth. They will be saved in bundle.authData
. You can reference these fields in any subsequent API call as needed.
Note: Only OAuth and Session Auth support computed fields.
If you want Zapier to validate that these additional fields exist, you need to use Computed Fields. If you define computed fields in your integration, Zapier will check to make sure those fields exist when it runs the authentication test API call.
Computed fields work like any other field, though with computed: true
property, and required: false
as user can not enter computed fields themselves. Reference computed fields in API calls as {{bundle.authData.field}}
, replacing field
with that field’s name from your test API call response.
You can see examples of computed fields in the OAuth2 or Session Auth example sections.

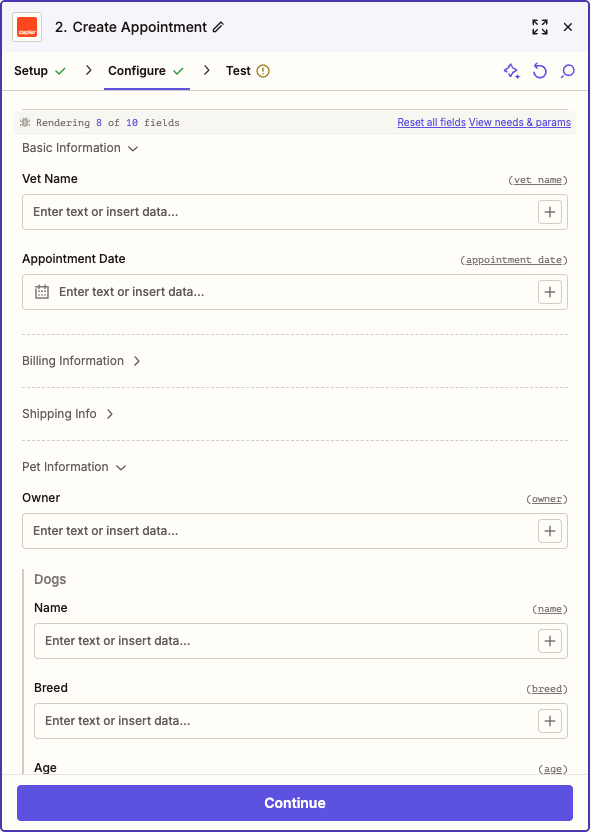

Nested & Children (Line Item) Fields
When your action needs to accept an array of items, you can include an input field with the children
attribute. The children
attribute accepts a list of fields that can be input for each item in this array.
Defining extra input field metadata
Since version 15.19.0, input fields may define a meta
property containing an object with string
keys and string
, integers
or boolean
values. This meta
object will then be made available as part of bundle.meta, under the inputFields
key. For example, if an input field with a create_recipe
key defines a meta
object, then this object will be available during the perform
method in: bundle.meta.inputFields['create_recipe']
.
This context storage is particularly useful when using dynamically-generated fields, as you may want to use this extra data to change certain logic in the perform
method of your triggers or actions.
